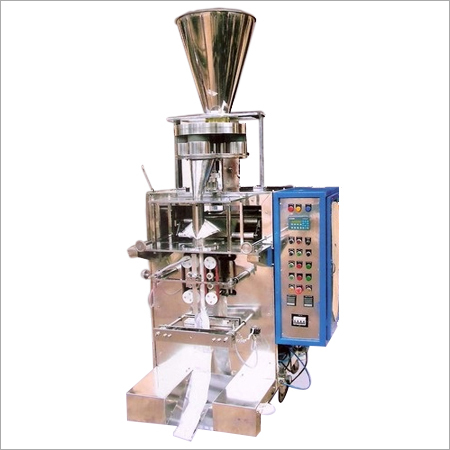

Collar Type Cup Filler Machine

Collar Type Cup Filler Machine
Collar Type Cup Filler Machine
Product Code : CTCFM-01
Brand Name : GANPATI PACKING
Product Description

We are one of the leading manufacturer of Collar Type Cup Filler Machine to our widely scattered clients. It is available in various specifications to meet the demands of variegated clients. It is used to fill powder and granules viz, chips, rice, flour, tea, salt, sugar, henna, corn flakes and so on. Collar Type Cup Filler Machine is an intermittent machine designed for the efficient packing of product in seal pouch of up to 1 kg. Clients can avail it from us at highly competitive prices.

Features:

  • Fully automatic collar type form
  • Ease of operation and maintenance
  • Can be synchronized with any Automatic weighing and cup filler system
  • The machine is suitable for all type of heat sealed laminated film, aluminum foil etc.
  • Impulse heat sealing system can also be providing for sealed virgin film
  • The machine is versatile and can be easily change over from one pouch to another
  • All contact parts are made up of food grade stainless steel 304/316
  • Pouch repeat can be easily adjust from 25 mm to 300 mm

Specifications:


Packing Material

Heat sealed Laminated Films

Roll Width

Max - 425mm Min 120 mm

Pouch Type

Center Seal Pouch

Pouch Dimension

Width = 50 - 200 mm

Height = 65 300 mm

Electrical Supply

230 V/A.C/Single Phase/50 Hz

Power Consumption

3Kw

Compressed Air Required

6CFM @6 Bar

30 Shots @ Minute

Production Rate

(Varies as per the Nature of Product &

Filling Range)

Weight

Approx. 750 Kgs

Machine Dimension

L 1050 mm, W 990 mm, H 1360 mm
